Manual Grinding

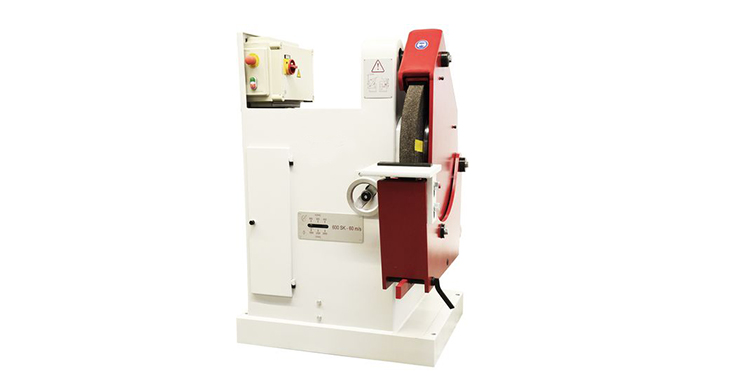

SK - E Single Station Rough Grinding Machine

• Rema high capacity rough grinding machines with maintenance free 3-step belt drive.
• The heavy duty steel construction guarantees a completely vibration-free operation.
• Easy adjustment of tool rest with simultaneously wheel hood adjustment.
• Maintenance free spindle drive.
• 'Rot-Visier' safety hood which closes automatically the window in the unlikely event of a wheel breakage.
• High end safety standard with CE marking.

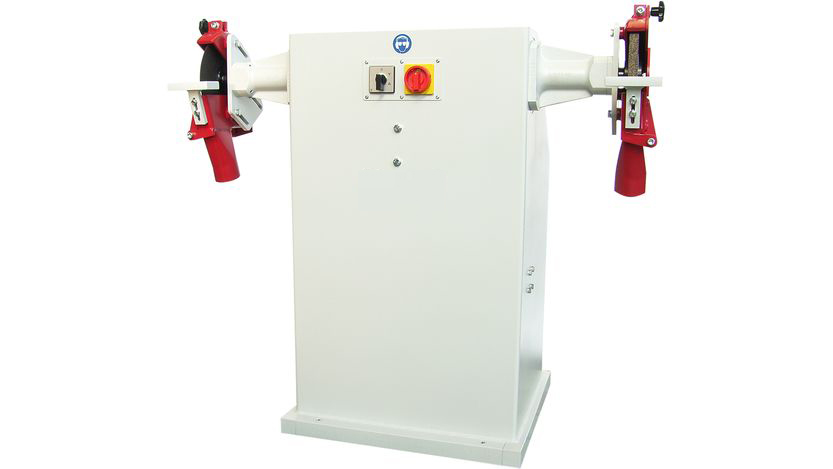

PME 60 High Speed Rough Grinding Machine

• Rough grinding machines for grinding speed 60m/s.
• Even bulky work pieces can be processed because of the external position of the grinding tools.
• The machine is equipped with clamping flanges for grinding wheels and on the other side with flanges for cutting wheels.

Option

• Wheel hood design fr wheel diameter 300mm.

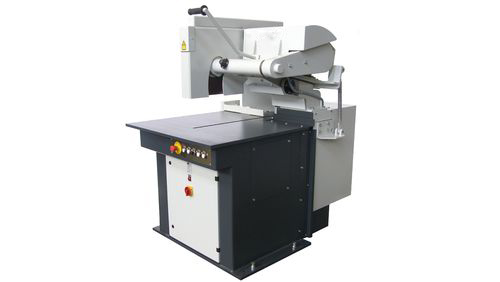

TS 400 - M Cut-off Machine

• High adjustable cutting head for adaptation to different work piece sizes and shapes.
• Electrically adjustable end stop for work piece fixation.
• A laser line shows the cutting line onto the work piece just before the cut will be done.

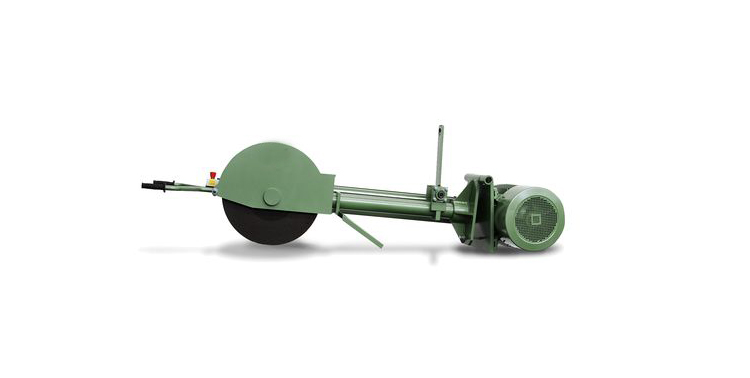

PTS 500/600 ST Swing Frame Cut-off Machines With Colume

• Stationary swing frame cut-off machines with laterally adjustable work table for easy and quick cutting of work pieces with different geometry.
• Easy positioning of the work table with handwheel and safe fixation with pneumatic bracket.
• A laser shows the cutting position before cutting.

Option

• Gear for adjustment of the cutting head +30deg./-45deg.
• Pneumatic clamping vice 180deg. turnable.
• Horizontal movement of the cutting head (+/- 300mm) with gear motor

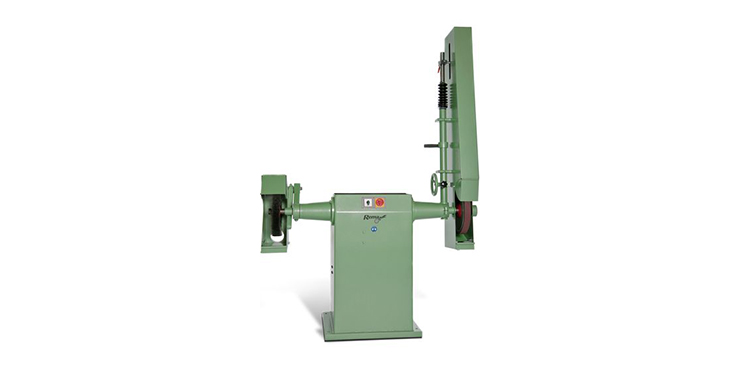

DP40 - Serie Belt Grinding Machines With Direct Drive

• Directly driven spindle shaft.
• Star-Delta switches for motor shaft.
• Abrasive belt head EB 3-S.
• Single sided or double sided attachable.
• Belt length 3500mm, width max. 100mm.
• Closed belt protection unit available in steel or aluminium version.
