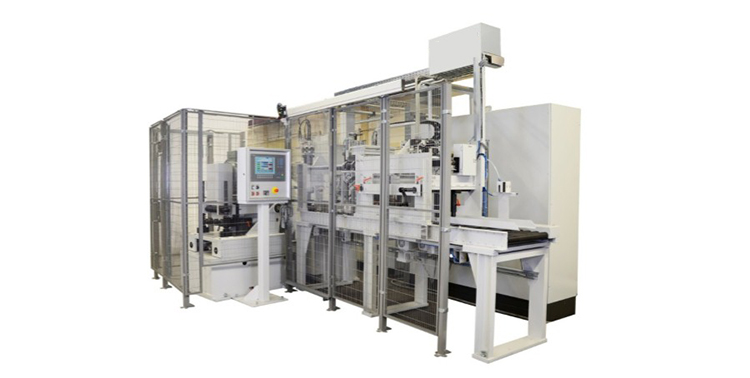

Grinding machine for car brake discs, flywheels, Brake drums, etc.
For removal of joint flash and ingates on the periphery.
- Inside diameter grinding station
- Diameter measuring (inside/ outside) + grinding wheel compensation
- Surface testing with camera, from both sides
- Acoustical Resonance analysis - tests the dynamic strength
- Diamond grinding wheel
|Technical Data:||S1 - C|
|Grinding Power:||up to 37 kW|
|Grinding wheel:||760x76x560 mm|
|Grinding speed:||45 m/s|
|Workpiece:||210 - 420 mm|
