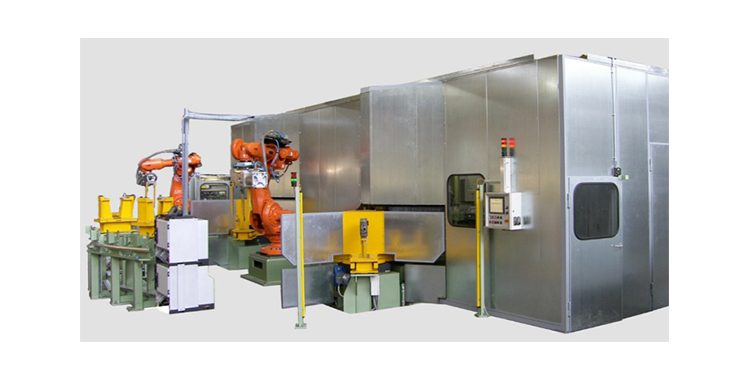

Cylinder Block /Head Cylinder
Two twin-sided flat surface deburring machines to grind four sides fully automatic within short cycle time. Hydraulic clamping system to fix the workpieces during the grinding process.
Optional:
- Fixture changing system fully automatic with robot.
- Automatic loading and unloading units.
| Technical Data: | DPM 610 and DPM 760 |
|---|---|
| Grinding spindle: | 55 or 75 kW |
| Grinding wheel: | 610 or 760 mm |
| Grinding speed: | 45 m/s |
| Movements: | NC-controlled, hydraulically driven |
